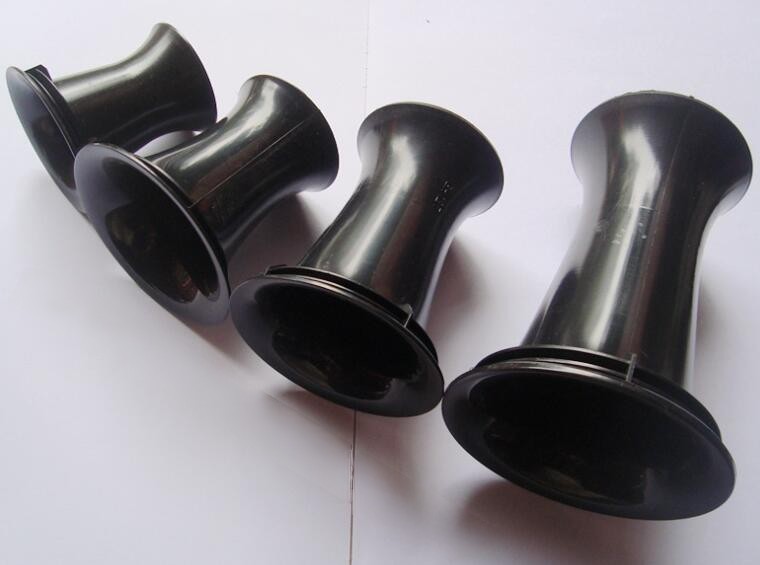

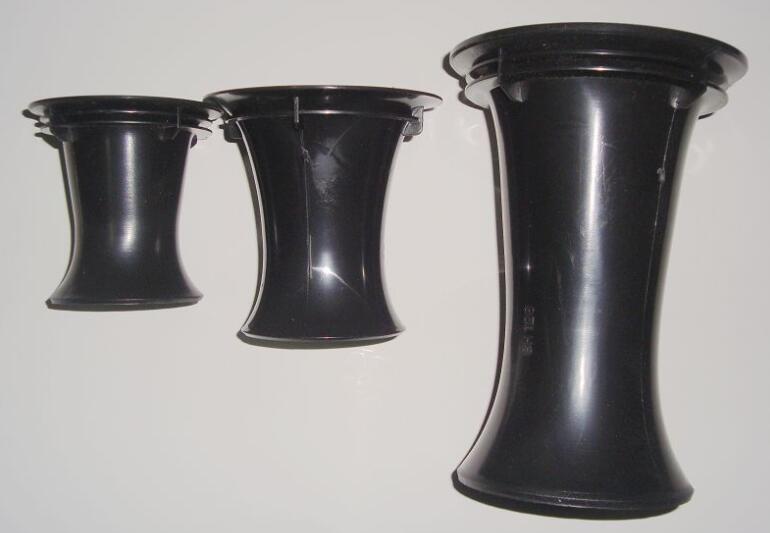

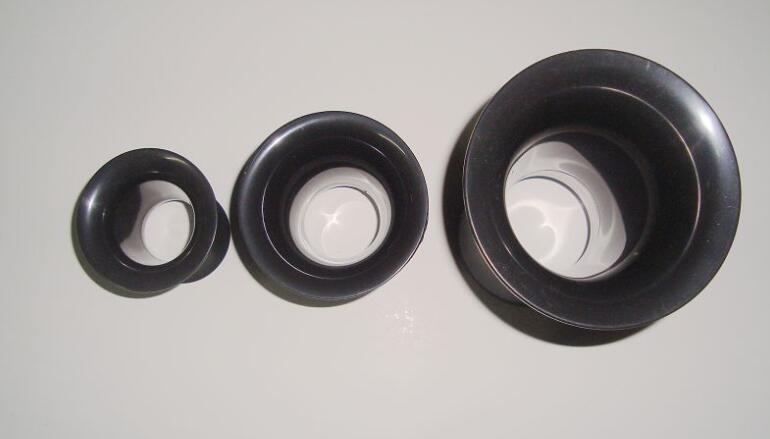

126 216 237 127 128 double head air duct acoustic

126 216 237 127 128 double head air duct acoustic
Item: 126 216 237 127 128 sound hole Product Name: 126 216 237 127 128 double head air duct acoustic
Descriptions:
126 sound hole
Material: black ABS, shiny black
Outer diameter of orifice: 48.5mm, inner diameter: 29mm
Outer diameter of bottom hole: 39mm
Box entry opening 44mm * height 66mm

216 sound hole
Material: black ABS, shiny black
Outer diameter of orifice: 73mm, inner diameter: 45mm
Outer diameter of bottom hole: 58mm
Box entry opening 65mm * height 74mm

237 sound hole
Material: black ABS, shiny black
Outer diameter of orifice: 91mm, inner diameter: 56mm
Box entry opening 76mm * height 89mm
Bottom outer diameter: 63mm

127 sound hole
Material: black ABS, shiny black
Outer diameter of orifice: 91mm, inner diameter: 58mm
Outer diameter of bottom hole: 72mm
Box entry opening 82mm * height 110mm

128 sound hole
Material: black ABS, shiny black
Outer diameter of orifice: 111mm, inner diameter: 74mm
Box entry opening 100mm * height 160mm
Outer diameter of bottom hole: 87mm
